Common 3-gun rifle target dimensions


  • Please log in to reply
6 replies to this topic

#1 Chambers

Chambers

    actual GM

  • Members
  • PipPipPipPip
  • 2,299 posts
402
  • LocationOKC, OK

Posted 03 April 2012 - 11:22 PM

*
POPULAR

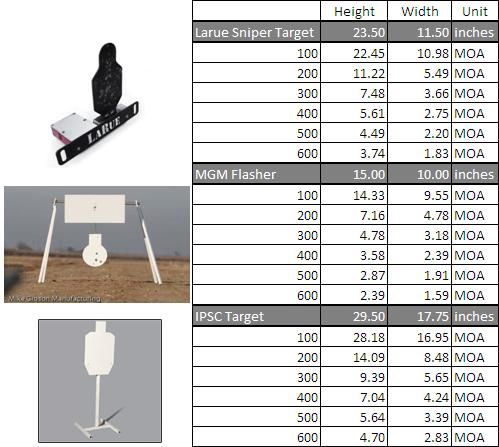

Here is a quick and dirty list of the common 3 gun rifle targets and their appearance (size in MOA) at various distances.

I put it together for dry fire purposes but someone else may find it helpful for other stuff as well.

Posted Image

#2 RyanReed

RyanReed

    Semi-Pro

  • Members
  • PipPipPip
  • 234 posts
48
  • LocationBenton, AR

Posted 04 April 2012 - 06:01 AM

That's very helpful. Thanks!
Ryan Reed

Youtube videos:http://www.youtube.c...10?feature=mhee

#3 kaiserb

kaiserb

    .223

  • Members
  • PipPip
  • 99 posts
13
  • LocationDFW Texas

Posted 04 April 2012 - 06:14 AM

Looks like it is time for a craft project

#4 shootingbuff

shootingbuff

    .50 BMG

  • Members
  • PipPipPipPip
  • 1,296 posts
34
  • LocationLawton, OK

Posted 04 April 2012 - 06:39 AM

Thanks, really appreciate it.
Jerry

A CCW isn't a totem, nor does it magically fiend off the bad element. Furthermore, a CCW is of no use if you can not employ said CCW.

BLUF:
You still have to hit the target.
One Shot Stop = locomotive with the target tied across the tracks.
Staying alive means you are aware, mentally prepared, proficient and fast in liberally applying proper shot placement.


Have you thanked a LEO, Firefighter, Medical / other emergency service worker, and least we forget the military lately?

#5 Brent Akin

Brent Akin

    .50 BMG

  • Members
  • PipPipPipPip
  • 787 posts
80
  • LocationMuskogee, OK

Posted 04 April 2012 - 08:16 AM

Hmm... Gives me an idea for a practice target.

#6 Michael J

Michael J

    .50 BMG

  • Members
  • PipPipPipPip
  • 707 posts
110
  • LocationEdmond, OK

Posted 04 April 2012 - 10:24 AM

Thanks Mike,
Good Stuff!

#7 bigbrowndog

bigbrowndog

    Red Neck Tactical

  • Members
  • PipPipPip
  • 281 posts
35
  • LocationSan Antonio, TX

Posted 08 April 2012 - 09:37 AM

If you take both of the W and H dimensions in moa's and add them together and divide by 2, you get a very good idea of the max distance those targets should be used based on the RNT 4moa rule. Although ideally you should ignore the extra height gained from the head of each target.

OK everybody hold your breath till that rule officially is adhered to !!!!!

Trapr
RedNeckTactical partner, check us out on Facebook

THE bigbrowndog, 2-20-98 - 3-18-10, best friend.

Don't MODERATE me bro!!!!
